How to Calculate Fastener Torque: A Complete Guide

Struggling to get the right torque on your fasteners? It’s not just about turning the bolt—it’s about precision, safety, and getting things just right. Too much torque, and you risk breakage; too little, and things could fall apart. Don’t worry! I’m here to share what I’ve learned about torque basics, hoping it’ll make mastering this skill a little easier for you.

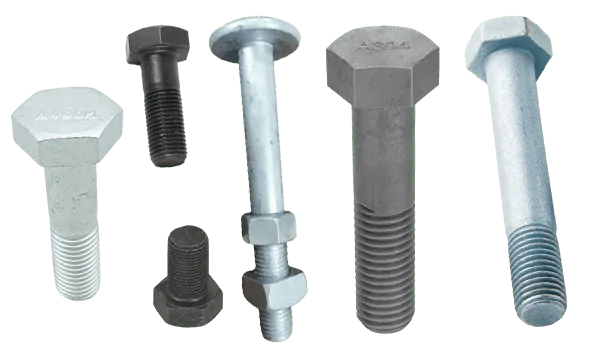

What is Bolt Torque?

Bolt torque refers to the twisting force applied to a bolt, nut or screw to achieve the necessary tension in a joint. Correct torque is critical in ensuring the bolt holds its load securely without damage or failure. When you torque a bolt, it stretches slightly, creating a clamping force that holds materials together. Too little torque? The materials might not be tightly secured, leading to possible failure. Too much torque? The bolt might break.

In industries like automotive or mechanical equipment, where precision is key, ensuring proper bolt torque keeps everything working smoothly. That’s why understanding torque calculation is essential for us in the fastener world.

Factors Affecting Torque Calculation

There are a few key things that affect how much torque you’ll need for a fastener. Let’s take a look at the most important ones:

1. Friction

Friction plays a critical role in the relationship between torque and tension. The type of thread, material, and even coatings can impact friction. For example, coarse threads tend to produce less friction compared to fine threads. Tighter thread fits also increase friction. When working with different materials or coatings, such as zinc plating or lubrication, the friction coefficient changes, affecting the torque required.

2. Lubrication

Lubrication plays a big role in torque. A lubricated bolt usually needs less torque to create the same tension as a dry bolt. For example, a dry bolt might have a friction factor (k-factor) of 0.2, but with lubrication, this could drop to 0.15 or even lower. The k-factor has a direct effect on how much torque is needed to tighten the bolt.

3. Bolt Diameter

Larger bolts require more torque due to the increased surface area and friction. This is why calculating torque varies depending on the size of the bolt used. Always remember that bigger doesn’t always mean better – the torque required is proportional to the diameter.

How to Calculate Fastener Torque?

Now, let’s get to the math. Calculating torque for fasteners involves a straightforward formula:

Torque (T) = k × D × P

Where:

• T = Torque (measured in Newton-meters or lb-ft)
• k = Coefficient of friction (this depends on lubrication and material)
• D = Diameter of the fastener (in millimeters or inches)
• P = Desired tension (measured in kilonewtons or pounds)

Example Calculation

Let’s say we have a bolt with a diameter of 0.5 inches and a desired tension of 11,175 lbs. If it’s a dry joint, we’ll use a k-factor of 0.2. Plugging the numbers into the formula:

T = 0.2 × 0.5 × 11,175

This gives us 1,117.5 inch-lbs. To convert that to foot-pounds, divide by 12:

T = 1,117.5 ÷ 12 = 93.125 ft-lbs

So, for this fastener, you’ll need to apply 93.125 foot-pounds of torque.

Understanding Coefficient of Friction

The k-factor changes a lot based on whether the bolt is dry or lubricated. A dry bolt usually has a higher k-factor, around 0.2, while a lubricated bolt lowers it to about 0.15 to 0.18. Always check the bolt specs to find the right k-factor for accurate torque calculation.

How to Avoid Common Mistakes in Torque Calculation?

Mistakes in torque calculations can cause big problems, from loose bolts to serious failures. Here’s how to avoid the most common issues:

1. Consider Friction and Lubrication

A common mistake is ignoring how friction affects torque. Whether the joint is lubricated or not makes a big difference. Always use the right friction factor (k-factor) for the job—dry joints need more torque, while lubricated ones need less.

2. Use Proper Measurement Tools

Using a high-quality torque wrench is crucial for accuracy. Avoid using impact tools that may produce inaccurate readings. Gradually apply torque to get a smooth and accurate measurement.

3. Follow Industry Standards

Always follow industry standards like ASTM or ISO when setting torque values. Each bolt type, like A325 or A490, has its own torque range. Knowing these specs helps you apply the right torque and avoid mistakes.

Verification Methods

After calculating the torque, it’s always good to verify it. Here are two common methods:

• First Movement Test: This involves tightening the fastener until the bolt just begins to move and measuring the torque at that point.
• Marking Test: Mark both the bolt and the surface, then tighten the fastener until the marks align after tightening.

Using these verification methods ensures that your calculated torque is accurate and the fastener is securely tightened.

Conclusion

And that’s the bottom line on torque! With this guide, calculating fastener torque should feel much easier. Just remember the key points – friction, lubrication, and bolt size – and always use the right tools. Whether you’re working on a car, wind tower, or heavy machinery, getting the torque right will keep your fasteners strong and secure for a long time.

For more information on fasteners or if you need help selecting the right bolt for your project, contact us at Shanghai Hengrui Industry Co., Ltd or email me at info@hrfastener.com.
