Bolt
Product Range
The material we can offered are stainless steel #304(A2), #316(A4), Hastelloy Alloy, Monel Alloy, Inconel Alloy

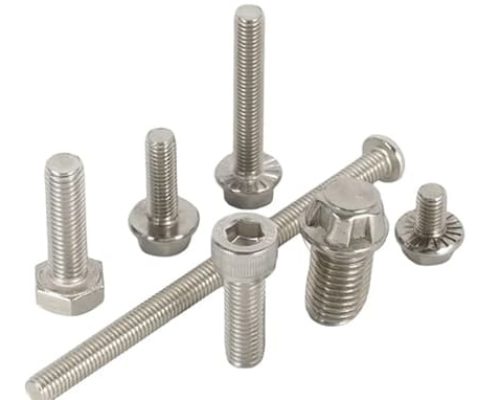

Stainless Steel Bolt
The head we can offered are round head and clipped head, the length range from 1 1/4-26″

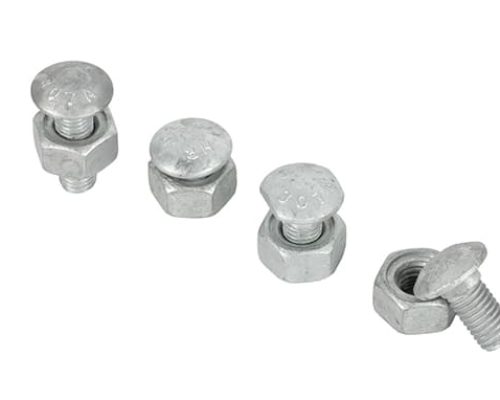

Guardrail Bolt
The grades are ASTM A325 and ASTM A490

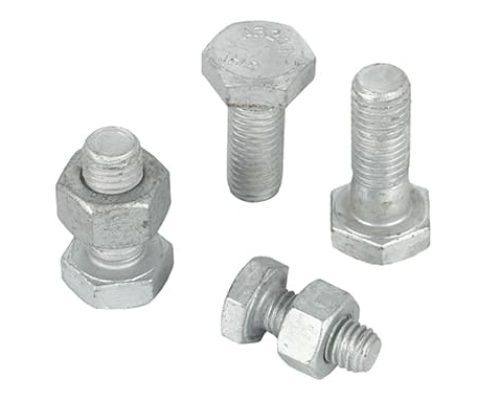

Heavy Hex Structural Bolt
The head types cover socket head cap screws, socket flat countersunk head cap screws, socket button head cap screws, socket low head cap screws
Socket Cap Screw
The material we can offered are stainless steel #304(A2), #316(A4), Hastelloy Alloy, Monel Alloy, Inconel Alloy
The head we can offered are round head and clipped head, the length range from 1 1/4-26″
The grades are ASTM A325 and ASTM A490
The head types cover socket head cap screws, socket flat countersunk head cap screws, socket button head cap screws, socket low head cap screws
Stainless Steel Bolt
Guardrail Bolt
Heavy Hex Structural Bolt
Socket Cap Screw
Timber bolt have four fillets, the sizes have 1/2″, 5/8″, 3/4″, and use in wood to wood applications
Timber Bolt

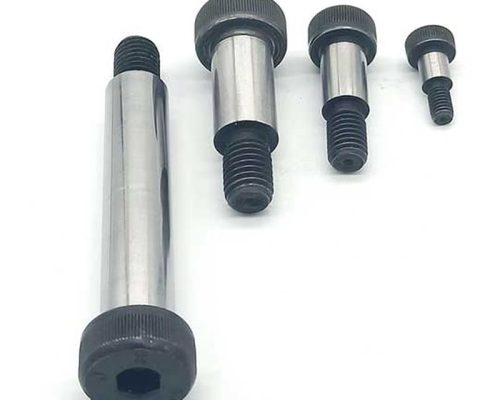

Ideal for pivoting applications or for mounting items
Shoulder Bolt

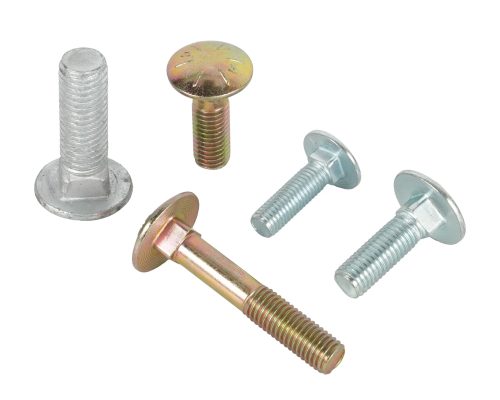

Features a smooth, rounded head and square neck
Carriage bolt

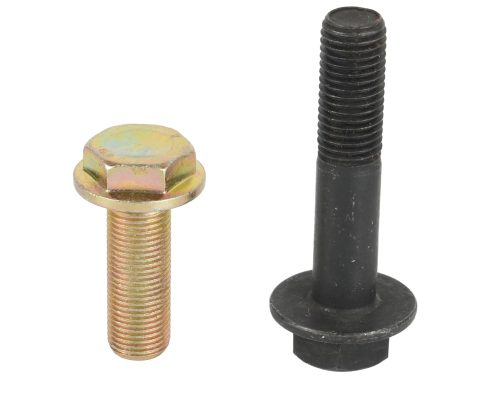

Supply for an integrated flange for load distribution
Hex Flange Bolt
Timber bolt have four fillets, the sizes have 1/2″, 5/8″, 3/4″, and use in wood to wood applications
Ideal for pivoting applications or for mounting items
Features a smooth, rounded head and square neck
Supply for an integrated flange for load distribution
Timber Bolt
Shoulder Bolt
Carriage bolt
Hex Flange Bolt

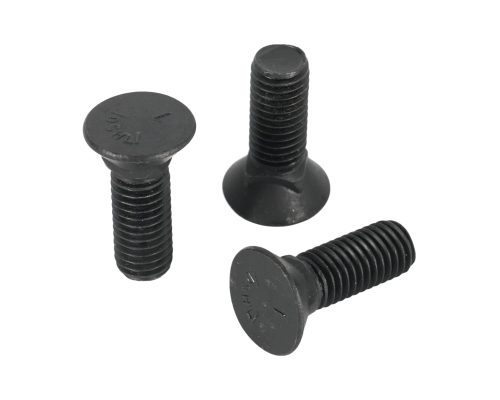

Use for heavy-duty plowing applications
Plow Bolt

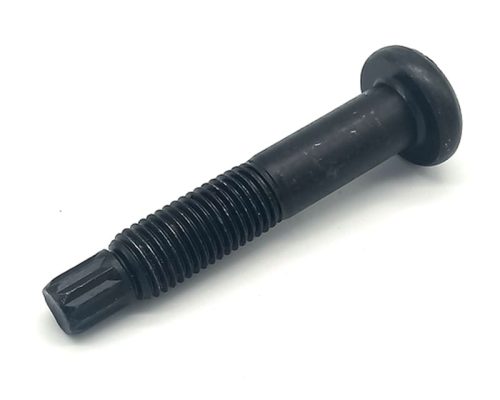

Designed for high-tension applications
TC Bolt

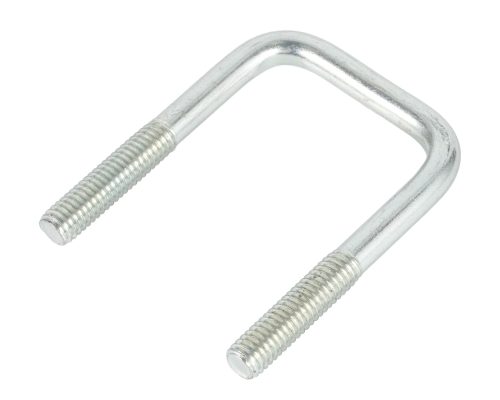

Secures piping and other round objects firmly
U Bolt
Offers superior holding in profiles with T-slots

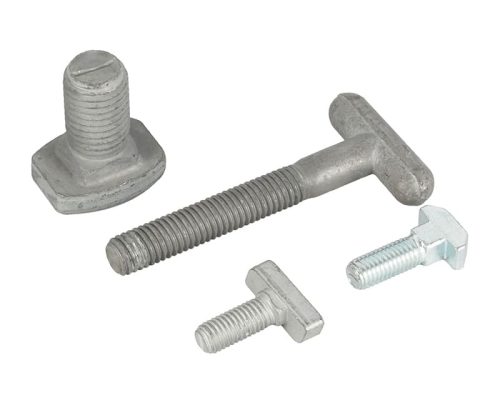

T-head Bolts
Use for heavy-duty plowing applications
Designed for high-tension applications
Secures piping and other round objects firmly
Offers superior holding in profiles with T-slots
Plow Bolt
TC Bolt
U Bolt
T-head Bolts
Widely used in the oil & gas industry

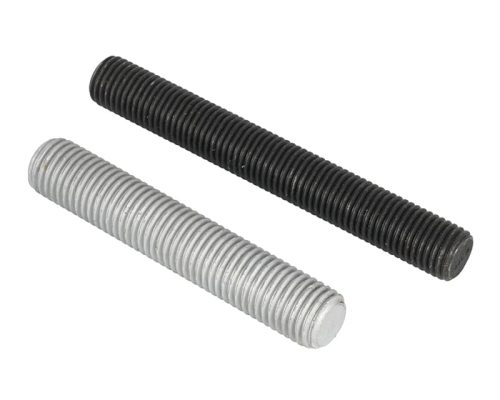

Threaded Bar
The classic bolt design for general-purpose fastening

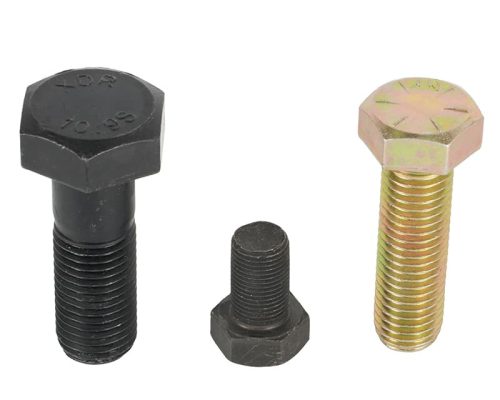

Hex Bolt

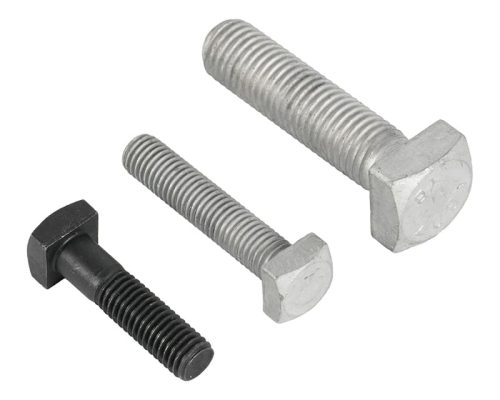

Use for the general industrial needs
Square Head Bolt
Ideal for lifting, securing with a looped head

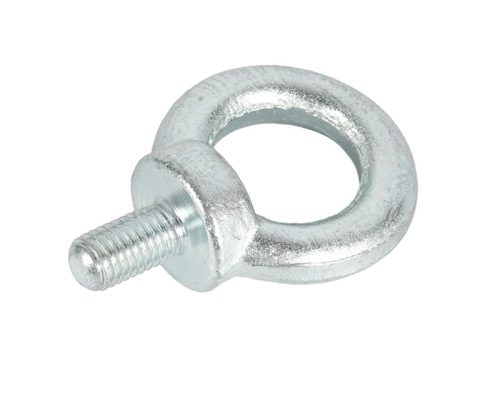

Eye Bolt
Widely used in the oil & gas industry
The classic bolt design for general-purpose fastening
Use for the general industrial needs
Ideal for lifting, securing with a looped head
Threaded Bar
Hex Bolt
Square Head Bolt
Eye Bolt

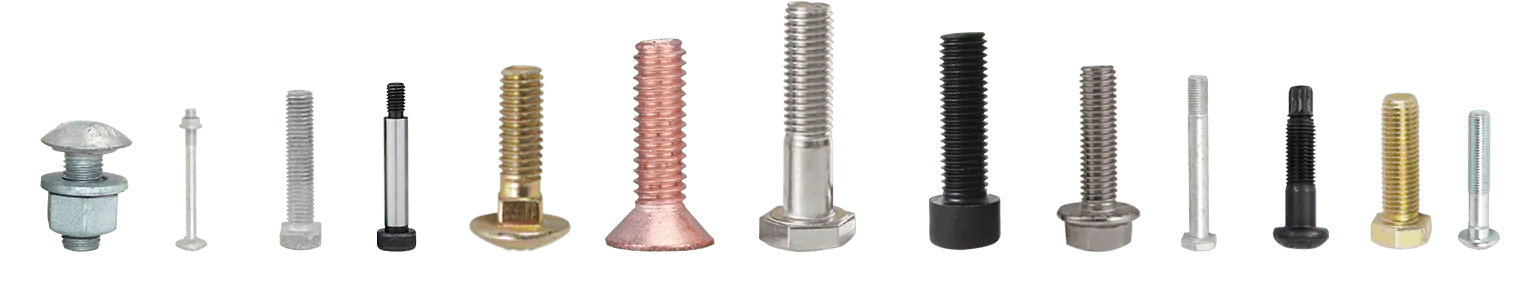

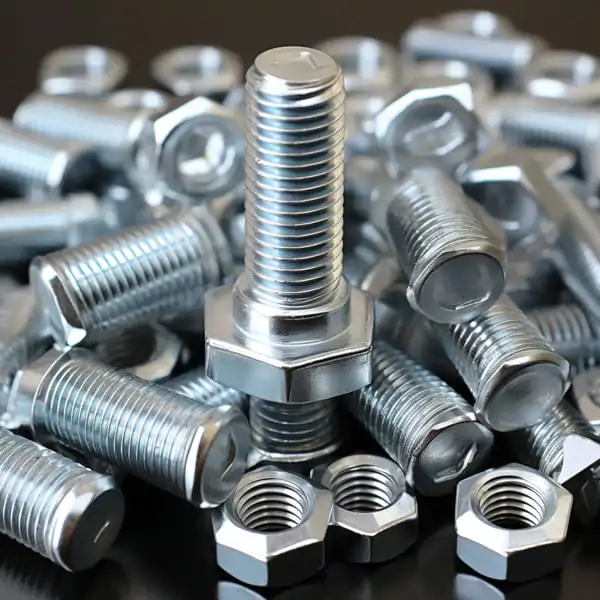

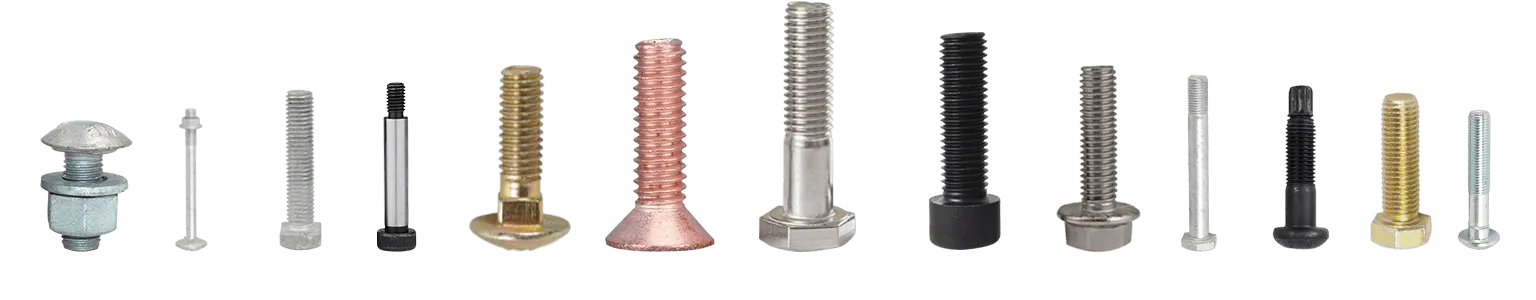

Your Trusted Supplier of Bolt Needs
Shanghai Hengrui Industrial Co., Ltd is a custom bolt manufacturer with 15 years experience, is specializing in the manufacturing and exporting of bolts, screws, nuts, washers, and custom non-standard products, with many different materials, like carbon steel, stainless steel, brass, aluminum, titanium, special alloy steel, etc.

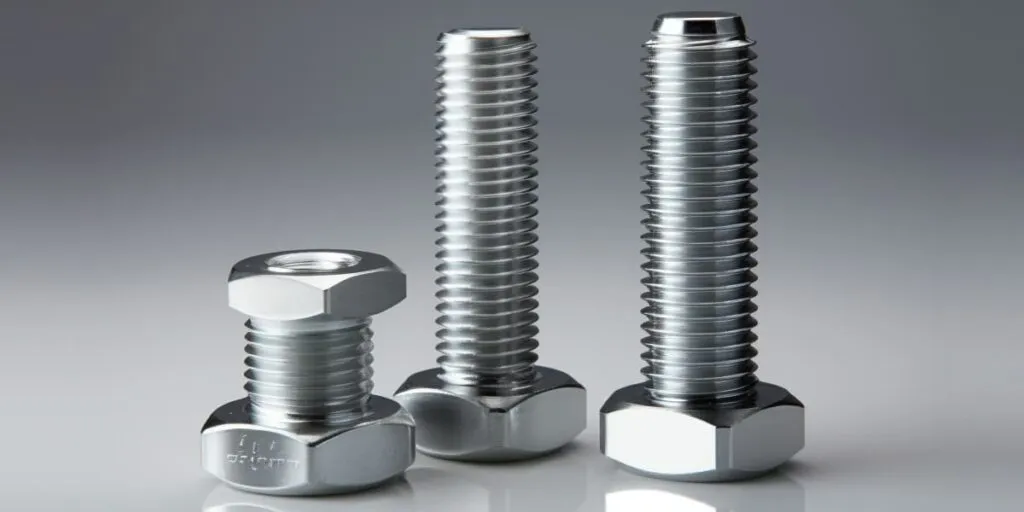

What is bolt?
Bolt is a kind of fastener, which include a head and a cylindrical body with threads, are use to connect two or more objects through inserted in pre-made holes, then fasten with a nut in the other end.
What is bolt?
Bolt is a kind of fastener, which include a head and a cylindrical body with threads, are use to connect two or more objects through inserted in pre-made holes, then fasten with a nut in the other end.
The head type of Bolt
Hex head, Heavy hex head, Round head, Hex flange head, T head, Square head

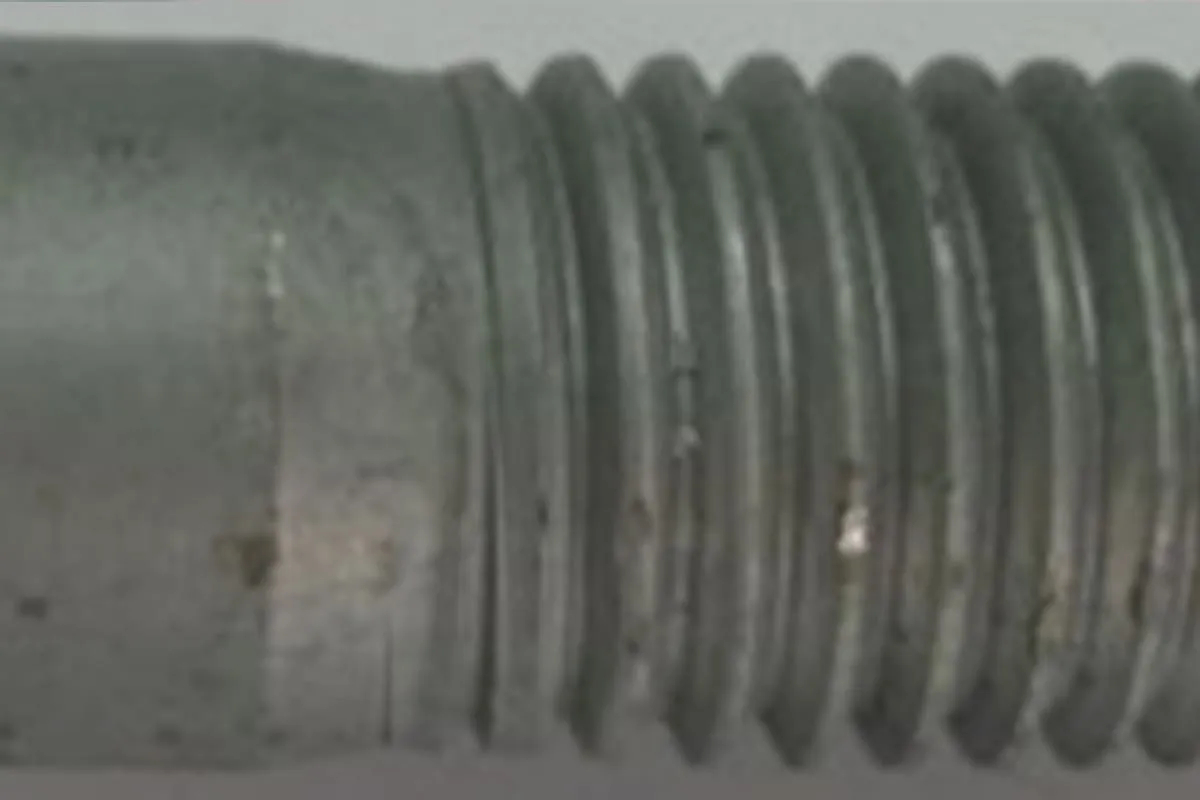

Full size body
The body diameter is very close to the major diameter of threads. Full-size body have better mechanical properties than undersize body, because they have more material in the shank.

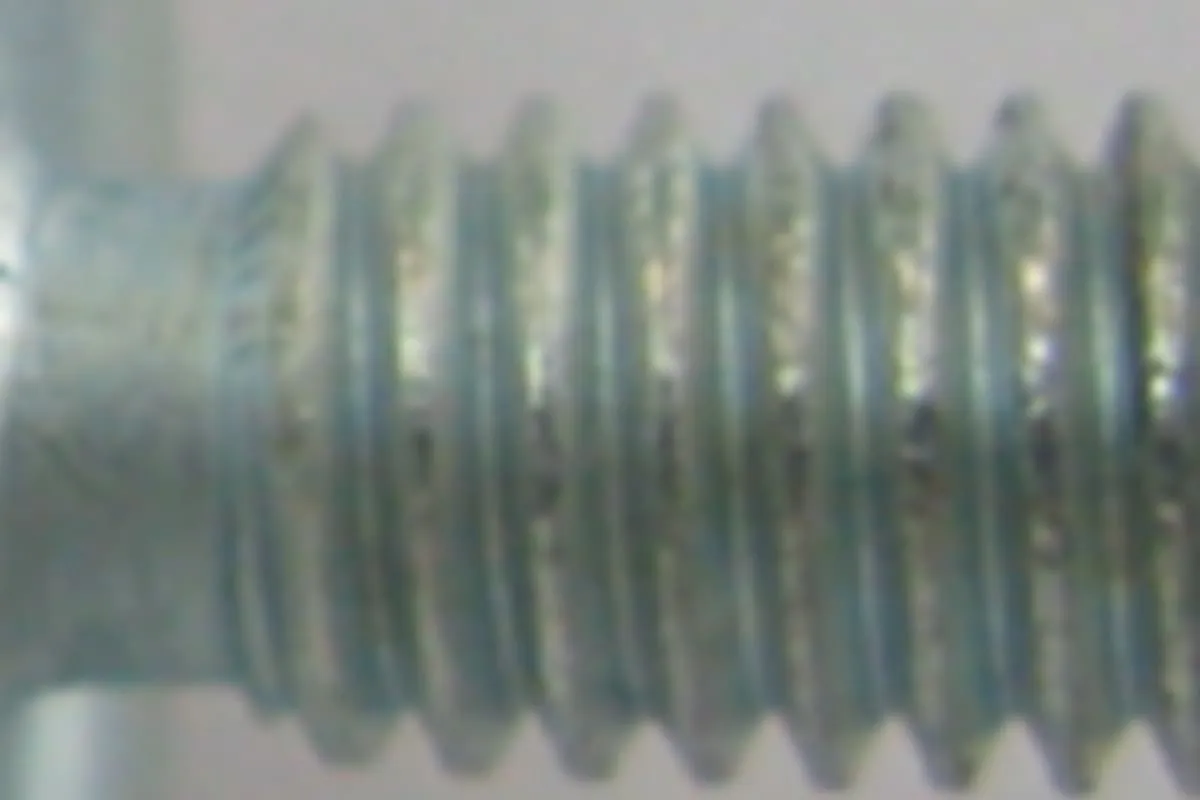

Undersize body
The diameter of undersize body is smaller than the major diameter of threads
Bolt Body Type
The diameter of a bolt’s body plays a crucial role in its strength and application.
Bolt Body Type
The diameter of a bolt’s body plays a crucial role in its strength and application.
Full size body
The body diameter is very close to the major diameter of threads. Full-size body have better mechanical properties than undersize body, because they have more material in the shank.
Undersize body
The diameter of undersize body is smaller than the major diameter of threads
Bolt Thread Lengths
The thread length of a bolt affects its grip strength and the types of materials it can effectively join.
The thread length of bolt have two kinds: Full thread and Partial thread

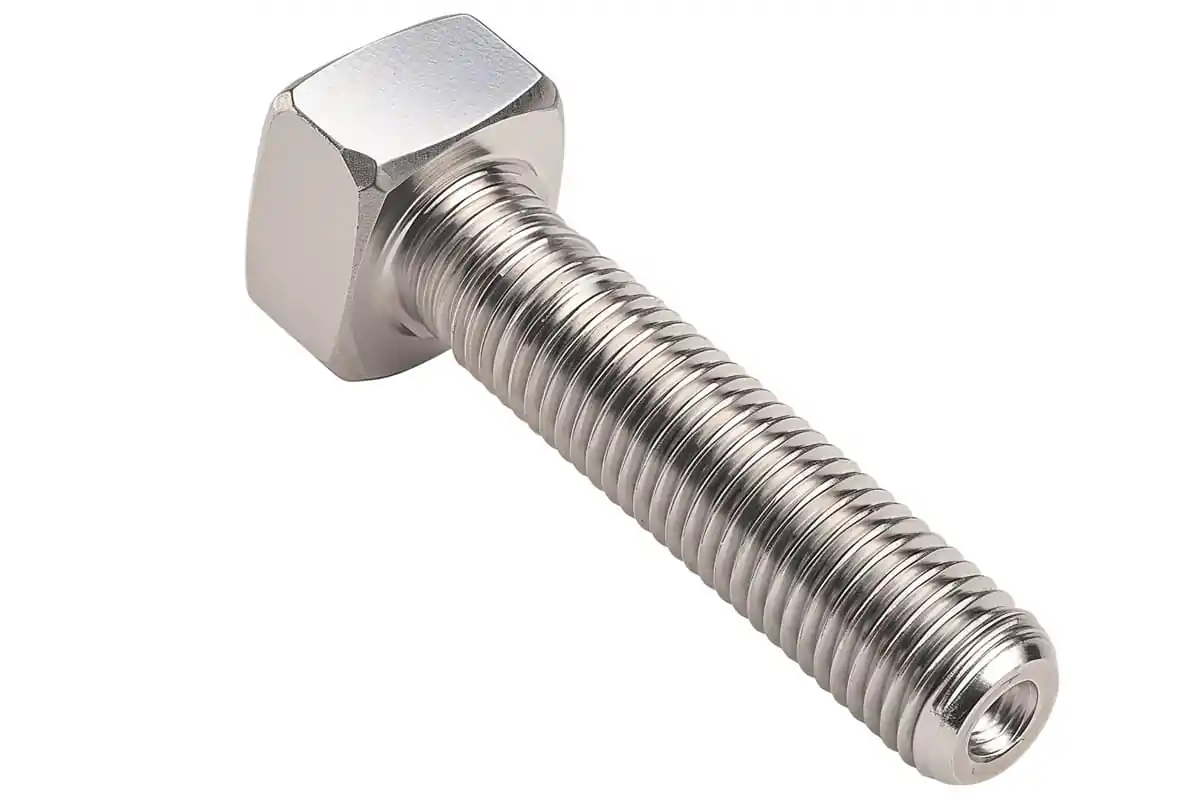

Full Thread
These bolts have threads that extend from the end to the head, providing maximum grip strength. They can be used in a variety of applications where the bolt is not subjected to significant shear forces. Full Thread Bolts for Maximum Grip

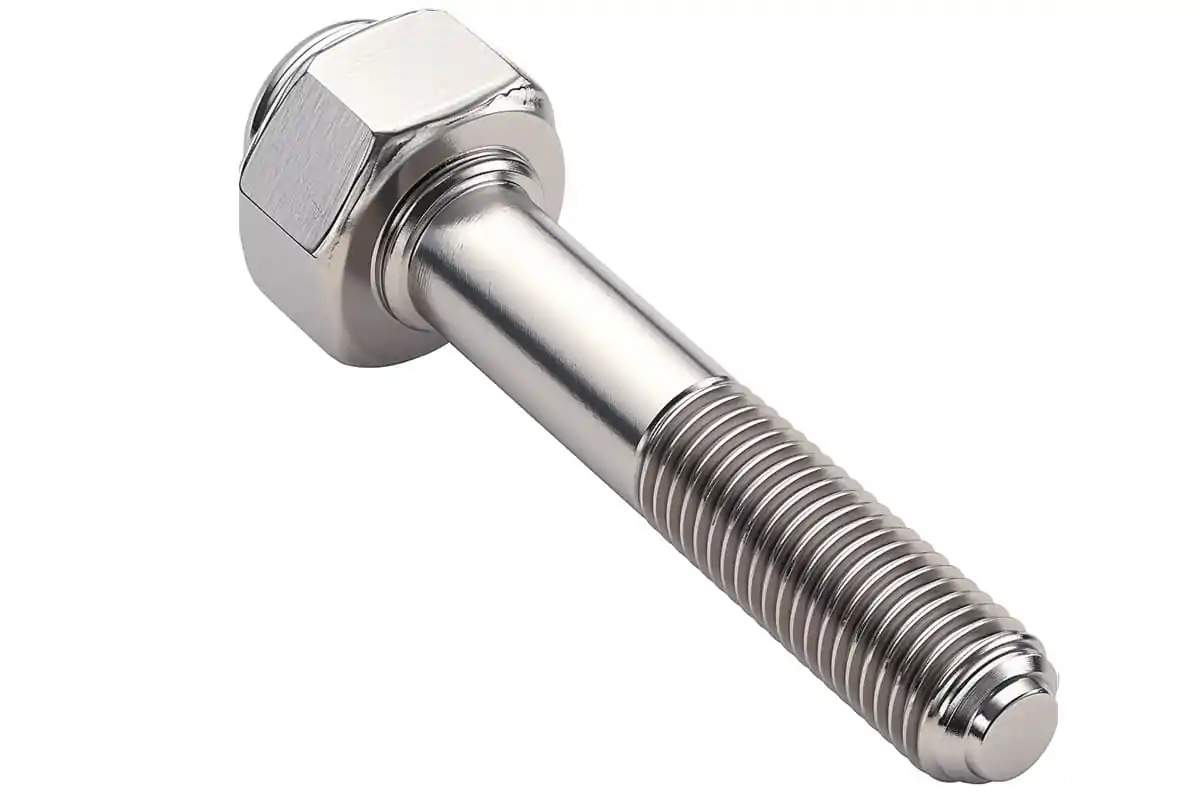

Partial Thread
Having a non-threaded shoulder between the head and the thread part, partial thread bolts are stronger under shear forces. They are ideal for aligning structures due to the smooth shoulder. Partial Thread Bolts for Enhanced Shear Strength
Bolt Thread type: M/UNC/UNF
| DIN ( M ) | |||
|---|---|---|---|
| Diameter (mm) | Pitch (mm) | Diameter (mm) | Pitch (mm) |
| M6 | 1 | M24 | 3 |
| M8 | 1.25 | 2 | |
| 1 | M27 | 3 | |
| M10 | 1.5 | 2 | |
| 1.25 | M30 | 3.5 | |
| 1 | 2 | ||
| M12 | 1.75 | M33 | 3.5 |
| 1.25 | 2 | ||
| 1.5 | M36 | 4 | |
| M14 | 2 | 3 | |
| 1.5 | M42 | 4.5 | |
| M16 | 2 | 3 | |
| 1.5 | M45 | 4.5 | |
| M18 | 2.5 | M48 | 5 |
| 2 | 3 | ||
| 1.5 | M52 | 5 | |
| M20 | 2.5 | M56 | 5.5 |
| 2 | 4 | ||
| 1.5 | |||
| M22 | 2.5 | ||
| 2 | |||
| 1.5 | |||
| ANSI, ASME, IFI ( UNC/UNF ) | |||
|---|---|---|---|
| Diameter (Inch) | Pitch (Threads Per Inch) | Diameter (Inch) | Pitch (Threads Per Inch) |
| 1/4- | 20UNC | 7/8- | 9UNC |
| 28UNF | 14UNF | ||
| 5/16- | 18UNC | 1" | 8UNC |
| 24UNF | 12UNF | ||
| 3/8- | 16UNC | 1-1/8- | 7UNC |
| 24UNF | 8UNF | ||
| 7/16- | 14UNC | 1-1/4- | 7UNC |
| 20UNF | 8UNF | ||
| 1/2- | 13UNC | 1-3/8- | 6UNC |
| 20UNF | 8UNF | ||
| 9/16- | 12UNC 18UNF | 1-1/2- | 6UNC |
| 5/8- | 11UNC | 8UNF | |
| 18UNF | 1-3/4- | 5UNC | |
| 3/4- | 10UNC | 8UNF | |
| 16UNF | |||
Bolt Dimension Standard
| Bolt types | Bolt grade | The grade of recomment nut | The grade of recommend washer |
|---|---|---|---|
| hex bolt, hex cap screw, carriage bolt, hex flange bolt, squre bolt, plow bolt, U bolts, splice bolt, T bolt, socket cap screw, timber bolt,etc. | SAE J429 Gr.2 | SAE J995 Gr.2 | N/A |
| SAE J429 Gr.5 | SAE J995 Gr.5 | N/A | |
| SAE J429 Gr.8 | SAE J995 Gr.8 | N/A | |
| ASTM A307 Gr.A | ASTM A563 Gr.A | N/A | |
| ASTM A307 Gr.B | ASTM A563 Gr.A | N/A | |
| thread rods and headed bolt | ASTM A193 B7 | ASTM A194 Gr.2H | F436 |
| ASTM A193 B8 class1 | A194 Gr. 8 | SS304 | |
| ASTM A193 B8M class1 | A194 Gr. 8M | SS316 | |
| ASTM A193 B8 class 2 | A194 Gr. 8 | SS304 | |
| ASTM A193 B8M class 2 | A194 Gr. 8M | SS316 | |
| steel transmission tower bolt | ASTM A394 Type 0 | ASTM A563 Gr.A | F436 |
| ASTM A394 Type 1 | ASTM A563 Gr.DH | F436 | |
| ASTM A394 Type 3 | ASTM A563 Gr.DH3 | F436 | |
| anchor bolt | ASTM F1554 Grade 36 | ASTM A563 Gr.A | F436 |
| ASTM F1554 Grade 55 | ASTM A563 Gr.A | F436 | |
| ASTM F1554 Grade 105 | ASTM A563 Gr.DH | F436 | |
| heavy hex structural bolts | ASTM A325 | ASTM A563 Gr.DH | F436 |
| ASTM A490 | ASTM A563 Gr.DH | F436 |
Bolt Grade Specification
A307 & A394 Grade
| Standard for Bolt | Grade | Tension Stength | Yield Strength | Enlogation | Length | Hardness | |
|---|---|---|---|---|---|---|---|
| ksi | ksi | % | in. | Brinell | Rockwell B | ||
| A307 | GR.A | 60min | -- | 18 | ＜3*D | 121-241HRB | 69-100HRB |
| ≥3*D | 241max | 100max | |||||
| GR.B | 60-100 | -- | 18 | ＜3*D | 121-212 | 69-95 | |
| ≥3*D | 212max | 95max | |||||
| A394 | type0 | 74 | 80-100 | ||||
| type1 | 120 | 25-34 | |||||
A325 Grade
| Standard for Bolt | Grade | Bolt Size | Tension Stength | Yield Strength | Enlogation | Bolt Length | Hardness | |
|---|---|---|---|---|---|---|---|---|
| in. | ksi | ksi | % | in. | Brinell | Rockwell C | ||
| A325 | type1 | 1/2-1 | 120min | 92min | 14min | ＜2*D | 253-319 | 25-34HRC |
| ≥2*D | 319max | 34max | ||||||
| 1-1/8~1-1/2 | 105min | 81min | 14min | ＜3*D | 223-286 | 19-30HRC | ||
| ≥3*D | 286max | 30max | ||||||
SAE J429 Grade
| Standard for Bolt | Grade | Bolt Size | Tension Stength | Yield Strength | Enlogation | Hardness | |
|---|---|---|---|---|---|---|---|
| in. | ksi | ksi | % | Surface 30N max | Core Rockwell | ||
| SAE J429 | GR.2 | 1/4 to 3/4 | 74 | 57 | 18 | / | B80-100 |
| over 3/4 to 1-1/2 | 60 | 36 | 18 | / | B70-100 | ||
| GR.5 | 1/4 to 1 | 120 | 92 | 14 | 54 | C25-34 | |
| over 1 to 1-1/2 | 105 | 81 | 14 | 50 | C19-30 | ||
| GR.8 | 1/4 to 1-1/2 | 150 | 130 | 12 | 58.6 | C33-39 | |
A354 & A490 Grade
| Standard for Bolt | Grade | Bolt Size | Tension Stength | Yield Strength | Enlogation | Hardness | |
|---|---|---|---|---|---|---|---|
| in. | ksi | ksi | % | Brinell | Rockwell C | ||
| A354 | BC | 1/4~2-1/2 | 125min | 109min | 16 | 255-331 | 26-36 |
| >2-1/2 | 115min | 99min | 16 | 235-311 | 22-33 | ||
| BD | 1/4~2-1/2 | 150min | 130min | 14 | 311-363 | 33-39 | |
| >2-1/2 | 140min | 115min | 14 | 293-363 | 31-39 | ||
| A490 | type1 | 1/2~1" | 150-173 | 130min | 14 | <2*D, HB 311-352；>2*D, HB…-352; | <2*D, 33-39；>2*D, HC…-39; |
| 1~1-1/2" | 150-173 | 130min | 14 | <3*D,HB313-352；>3*D,HB…-352 | <2*D, 33-39；>2*D, HC…-39; | ||
A449 Grade
| Standard for Bolt | Grade | Bolt Size | Tension Stength | Yield Strength | Enlogation | Hardness | |
|---|---|---|---|---|---|---|---|
| in. | ksi | ksi | % | Brinell | Rockwell C | ||
| A449 | type1 | 1/4 to 1 | 120min | 92min | 14 | 255-321 | 25-34 |
| over 1 to 1-1/2 | 105min | 81min | 14 | 223-285 | 19-30 | ||
| over 1-1/2 to 3 | 90min | 58min | 14 | 183-235 | / | ||
| type2 | 1/4 to 1 | 120min | 92min | 14 | 255-321 | 25-34 | |
| over 1 to 1-1/2 | 105min | 81min | 14 | 223-285 | 19-30 | ||
| over 1-1/2 to 3 | 90min | 58min | 14 | 183-235 | / | ||
A193 Grade
| Standard for Bolt | Grade | Bolt Size | Tension Stength | Yield Strength | Enlogation | Reduction of Area | Hardness | |
|---|---|---|---|---|---|---|---|---|
| in. | ksi | ksi | min% | min% | Brinell | Rockwell | ||
| A193 | B7 | to 2-1/2 | 125min | 105min | 16 | 50 | / | C35 |
| over 2-1/2 to 4 | 115min | 95min | 16 | 50 | ||||
| over 4 to 7 | 100min | 75min | 18 | 50 | ||||
| B7M | to 4 | 100min | 80min | 18 | 50 | 235 | B99 | |
| over 4 to 7 | 100min | 75min | 18 | 50 | 235 | B99 | ||
| Class 1: B8,B8M | all | 75min | 30min | 30 | 50 | 223 | B96 | |
| B16 | to 2-1/2 | 125min | 105min | 18 | 50 | 321 | C35 | |
| over 2-1/2 to 4 | 110min | 95min | 17 | 45 | 321 | C35 | ||
| over 4 to 7 | 100min | 85min | 16 | 45 | 321 | C35 | ||
| Class 2:B8M | to 3/4 | 110min | 96min | 15 | 45 | 321 | C35 | |
| over 3/4 to 1 | 120min | 80min | 20 | 45 | 321 | C35 | ||
| over 1 to 1-1/4 | 110min | 95min | 25 | 45 | 321 | C35 | ||
| over 1-1/4 to 1-1/2 | 100min | 85min | 30 | 45 | 321 | C35 | ||
ISO 898-1 2009(DIN931/933) Grade
| Standard for Bolt | Grade | Bolt Size | Tension Stength | Yield Strength | Proof Load Stress | Enlogation | Hardness |
|---|---|---|---|---|---|---|---|
| mm | Mpa | Mpa | Mpa | % | |||
| ISO 898-1 2009(DIN931/933) | 4.8 | 420min | 340min | 310 | - | B71-95 | |
| 5.8 | 520min | 420min | 380 | - | B 82-95 | ||
| 6.8 | 600min | 480min | 440 | - | B 89-99.5 | ||
| 8.8 | ≤16 | 800min | 640min | 580 | 12 | C22-32 | |
| >16 | 830min | 660min | 600 | 12 | C23-34 | ||
| 10.9 | 1000min | 940min | 830 | 9 | C32-39 | ||
| 12.9 | 1200min | 1100min | 970 | 8 | C39-44 |
