Bolts may seem simple, but their manufacturing process is anything but. The challenge is that most people overlook the precision and detail involved in creating these essential components. Understanding how bolts are made is key to appreciating their strength and reliability. Allow me to guide you through the key steps of bolt manufacturing, showing the expertise and precision required to meet high industry standards.
Three Manufacturing Methods: Cold Forming, Hot Forging, and Machining
Bolts are made using different methods, but the three most common ones are cold forming, hot forging, and machining. Each method has its own strengths, and which one is used depends on the bolt’s size, shape, and design. Let’s take a closer look at these methods and how they help create strong, reliable bolts.
1. Cold Forming (Cold Heading)
Cold forming, also known as cold heading, is a popular method for producing bolts. This technique involves shaping metal at room temperature. It starts with a steel wire, which is cut to length, and then put through a series of dies and presses to form the bolt head. Once the head is formed, the bolt is passed through thread rolling machines that create the threads by pressing, not cutting, the steel. This method is highly efficient and perfect for large-scale production.
Advantages:
- Excellent material utilization
- Increased strength due to work hardening
- High-speed production with minimal waste

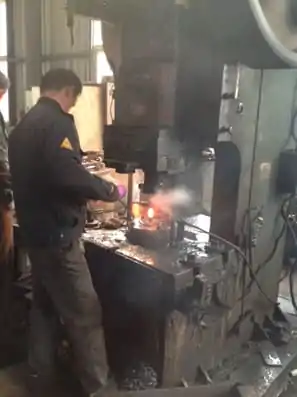

2. Hot Forging
Hot forging is another common method used to manufacture bolts, particularly when larger sizes or custom shapes are required. In this process, steel is heated to a high temperature (around 2,000°F), making it malleable enough to be pressed into the desired shape. The bolt is then allowed to cool and harden in its new form.
Advantages:
- Ideal for larger bolts
- Flexibility in bolt shape and size
- Suitable for complex designs
3. Machining
For bolts that require more intricate designs, machining is used. This process involves cutting material from a solid steel bar to achieve the desired shape. Lathes and mills are employed to drill, cut, and form the bolt. Machining is often used for small-volume production or highly specialized applications where precision is key.
Advantages:
- High precision
- Best for custom or small-volume orders
- Ability to create complex designs
Summary of 7 Steps in Bolt Manufacturing
While the manufacturing methods might vary, the steps involved in making a bolt follow a structured process to ensure precision and quality. Let’s break it down:
1. Material Preparation
The first step is preparing the raw material, typically steel wire. The wire is uncoiled from large spools, straightened to remove any bends or imperfections, and then cut into specific lengths slightly longer than the final bolt size.
Next, we get the wire ready for cold forging or hot forging, depending on the bolt’s design and size.
2. Cold Forging or Hot Forging
If cold forging is chosen, the wire is placed into a forging machine to form the bolt’s head and body. If hot forging is selected, we heat the steel before shaping it. In both cases, the head of the bolt is formed through a process called “upsetting,” which increases the material’s size for head formation.
The bolt is then chamfered to create a smooth edge, making it easier to fit a nut onto the bolt.

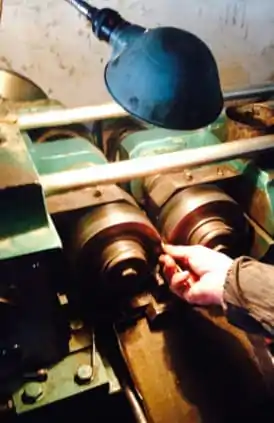

3. Thread Rolling
Threading is an essential step in bolt manufacturing. In most cases, the threads are created by rolling, which presses the threads into the bolt rather than cutting them. This process increases the bolt’s overall strength because the material isn’t removed during threading.

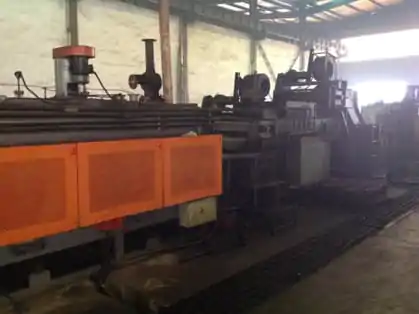

4. Heat Treatment
Next comes heat treatment, where the bolts are subjected to extreme temperatures and then cooled. This step improves the mechanical properties of the bolt, making it stronger and more durable. Heat treatment is essential for ensuring the bolt can withstand high stress and pressure during use.
5. Finishing
Bolts are often coated or plated to improve their corrosion resistance. Common finishes include zinc or other protective coatings that extend the life of the bolt, especially in harsh environments. Some bolts may also be polished or blasted to enhance their appearance.

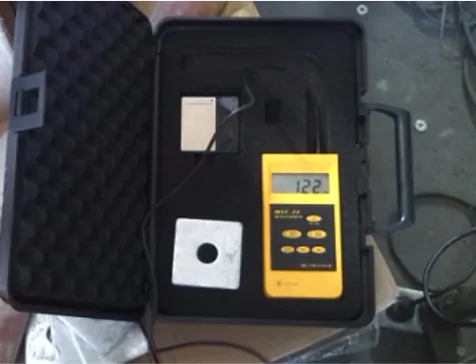

6. Quality Control
Throughout the manufacturing process, we take samples of bolts for quality control. These samples are tested for strength, dimensional accuracy, and other critical factors to ensure the bolts meet stringent industry standards. The final product has to pass these checks before it’s approved for shipping.
7. Packaging and Shipping
Once the bolts have passed quality checks, they are sorted, labeled, and packed for shipment. Depending on the size of the order, we use pallets or containers to prepare the bolts for delivery to customers all over the world.
Conclusion
The next time you tighten a bolt or see one supporting a structure, remember it’s more than just a piece of metal. It’s made with precision and care through a series of detailed steps. At Shanghai Hengrui, we are experts in producing high-quality bolts that meet international standards. With our skills in cold forming, hot forging, and machining, we make sure every bolt is strong, reliable, and ready to do its job.
If you need standard or custom bolts for your next project, feel free to reach out to us. We’re always here to help you find the perfect fastener solutions for your needs!
