The Ultimate Guide to Hex Head Bolts: Everything You Need to Know

Table of Contents
In many projects, selecting the right fastener is crucial for ensuring structural integrity and functionality. Among the various types available, hex head bolts stand out for their reliability and versatility. As we delve into the specifics of hex head bolts, this guide will equip you with the knowledge needed to make informed decisions for your next task.
Hex Head Bolt

What is a Hex Head Bolt?

A hex head bolt, or hexagonal head bolt, is a type of threaded fastener with a six-sided head. This design allows for easy tightening and loosening using a wrench or socket, making them a favorite for both DIY enthusiasts and professionals alike. These bolts come in various materials, including galvanized steel, stainless steel, and zinc-plated steel, and can be either fully or partially threaded. Fully threaded bolts are ideal when you need the threads to engage fully in your application, providing maximum grip. On the other hand, partially threaded bolts have a smooth shank near the head, which adds extra strength and is often used in scenarios where shear forces are a concern.

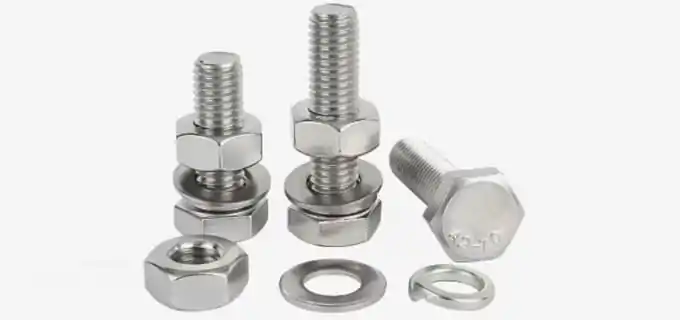

Hex Head Bolts

The Types of Hex Head Bolts

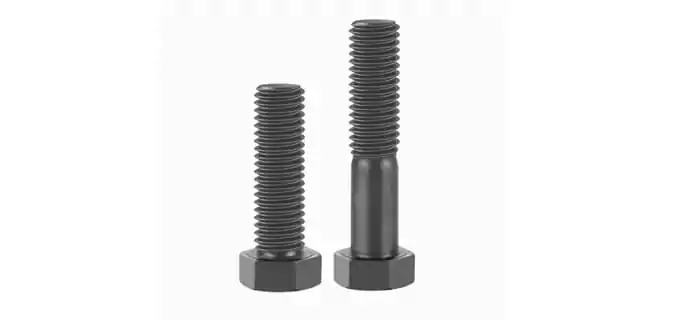

Hex head bolts can be categorized based on their thread length into two main types: fully threaded and partially threaded (or half-threaded) hex bolts.
  • Fully Threaded Hex Bolts
    These bolts have threads that run the entire length, providing maximum engagement for strong connections. They are commonly used in structural applications, machinery assembly, and in situations where the bolt needs to be adjusted or removed frequently.

  • Partially Threaded Hex Bolts
    These bolts have threads on only part of the shank, with the rest left smooth. The smooth section helps distribute load and improve alignment. They are often used in flange connections, where the smooth part provides stability and strength. So, what are half-threaded hex bolts called? They are known as partially threaded hex bolts.

What Are the Advantages of Hex Head Bolts?

You might wonder, “Why choose hex head bolts over other fasteners?” Well, here’s why: High Torque Capacity: The hexagonal head allows for the application of higher torque, which means you can tighten these bolts more securely than many other types. This is particularly important in heavy-duty applications where failure is not an option. Versatility: Whether you’re in construction, automotive, or machinery, hex head bolts are likely to be part of your toolkit. Their availability in various sizes and materials means they can be used in numerous applications, from securing wooden beams to fastening heavy metal components. Secure Fastening: Thanks to their design, hex head bolts offer a reliable and secure fit. When properly tightened, they resist loosening, even in high-vibration environments, making them a top choice for critical structural applications. Durability: Made from durable materials, these bolts offer long-term resistance to corrosion and wear, ensuring your projects stand the test of time. Standardized Sizing: Another benefit is that hex head bolts conform to industry standards. This means they are compatible with a wide range of nuts, washers, and other hardware, making them a go-to fastener for many professionals.

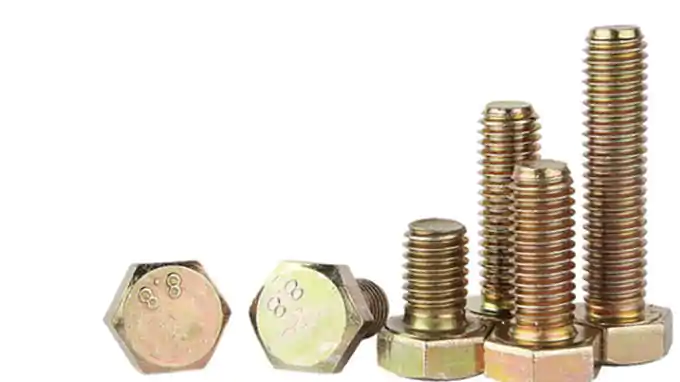

Hex Head Bolts

What Are Hex Head Bolts Used For?

Hex head bolts are incredibly versatile and can be found in various applications across different industries. Here’s where you might see them in action: Construction: Hex bolts are widely used in both structural and non-structural connections in buildings, bridges, and other infrastructure projects. Machinery and Equipment: Hex head bolts are often found in industrial machinery, where secure fastening is crucial to maintain operational safety and efficiency. Automotive Industry: These bolts are indispensable in automotive applications, from engine assembly to suspension systems, where durability and reliability are paramount. Manufacturing: In manufacturing processes, hex head bolts are used to join components that need a secure, long-lasting connection. Woodworking: They are also useful in woodworking, particularly when a strong bond is required between wooden parts. Plumbing and Pipelines: Hex head bolts are used to connect pipes and fittings securely, ensuring leak-free performance. Electrical and Electronics: While not as common, they are sometimes used in securing components where a strong, reliable fastener is needed.

How to Measure a Hex Head Bolt?

Accurate measurement is key when selecting a hex head bolt, whether you’re replacing an old one or installing a new bolt. Here’s a simple guide to measuring a hex head bolt: Bolt Length (L): Measure from the bottom of the bolt head to the tip of the threaded portion. For bolts longer than 6 inches, the thread length is typically 2 times the diameter plus 1/2 inch. Bolt Diameter: This is the width of the unthreaded shank portion. Use calipers or a micrometer for precise measurement. Head Width Across Flats (AF): This measurement is the distance between two parallel sides of the hexagonal head, which is also the size of the wrench or socket needed. Head Width Across Corners (AC): Measure the distance between two opposite corners of the hexagonal head. This is usually 1.155 times the width across flats. Head Height (H): Measure the height of the hexagonal head from the bottom to the top surface. For installed bolts, measure from the bottom of the head to the surface it protrudes from.
Hex Head Bolts

How Do You Install a Hex Head Bolt?

Installing a hex head bolt might seem straightforward, but doing it right ensures that your project holds up over time. Here’s a quick guide:
    1. Prepare the Materials
    1. Drill Pilot Holes (if needed)
    1. Insert the Bolt
    1. Tighten the Bolt
    1. If Using a Nut
    1. Check for Stability

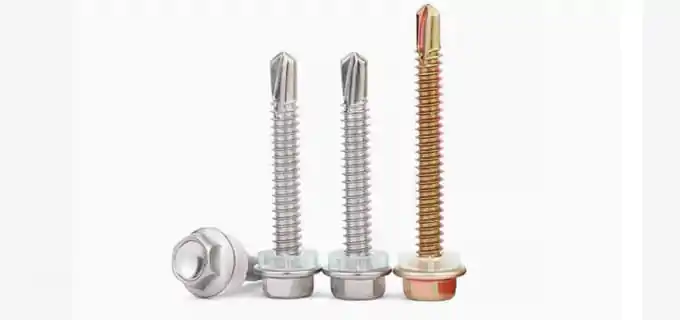

Hex Head Screw

What is the Difference Between a Hex Head Bolt and a Hex Head Screw?

Hex head bolts and hex head screws may look similar, but they have some key differences: Design: Hex head bolts have a flat underside and are designed to be used with a nut. They do not have a washer face under the head. In contrast, hex head screws have a flat washer face under the head, providing a larger bearing surface for load distribution. Tolerances and Precision: Bolts have looser tolerances and are suitable for general construction and heavy-duty applications. Screws, with tighter tolerances, are used in applications that require precision, such as automotive parts. Applications: Hex head bolts are typically used in construction and machinery, while hex head screws are often found in automotive and precision machinery applications.

Conclusion

Hex head bolts are a staple in many industries, offering versatility, durability, and reliability. Understanding their features and proper installation can make your projects smoother and more successful. Whether you’re building, fixing, or manufacturing, having the right hex head bolt on hand is essential. Feel free to reach out to us at Shanghai Hengrui Industry Co., Ltd for any of your Hex head bolts needs. We are here to help you find the perfect solution for your applications.
