Types of Threaded Rods: What Should You Know?

Table of Contents

Have you ever wondered how certain structures stay securely in place under tremendous pressure? The secret often lies in the all-powerful threaded rod. These versatile fasteners are an essential part of construction, fabrication, and many other industries.

Threaded rods come in various types, each designed for specific applications. The main types include:
Fully Threaded Rods (All-Thread): Continuous threading along the entire length.
Partially Threaded Rods: Threading on a portion of the length, rest is smooth.
Double-End Threaded Rods: Threading on both ends, smooth in the middle.
Threaded Studs: Short, often threaded on both ends or fully.

Interested to learn more about these amazing fasteners? We’ll go through each type of threaded rod and find out why they’re so awesome.

What is a Threaded Rod?

But what is a threaded rod, and how does it differ from a regular bolt? A threaded rod is a type of fastener commonly used in various industries. It has a cylindrical shape with continuous threading along its length. Also known as studs, bar stock, or all-thread rods,

Threaded rods consist of external threads and a rod shaft, typically used with nuts to form a helical pair for fastening and connecting applications. Unlike ordinary bolts, the length of a threaded rod can be customized for specific applications. They can be made from carbon steel, stainless steel, or non-ferrous metals like copper. Their mechanical principle uses the helical mechanism to convert a smaller rotational force (torque) into a larger axial force, amplifying the force. Threaded rods are widely used in various engineering and mechanical applications due to their versatility and mechanical properties.

Fully Threaded Rods (All-Thread)

Fully threaded rods, often called all-thread, have threading that extends continuously along their entire length. This design provides a firm grip throughout the rod, making them ideal for applications requiring significant tensile strength. If you need a lot of tensile strength, all-thread is often used in construction, plumbing, and electrical applications.

For instance, in construction, fully threaded rods can be used to connect wooden beams, reinforcing their structure. In plumbing, they help secure pipes and fixtures. Their continuous threading ensures a reliable grip, crucial for maintaining the integrity of structures under load.

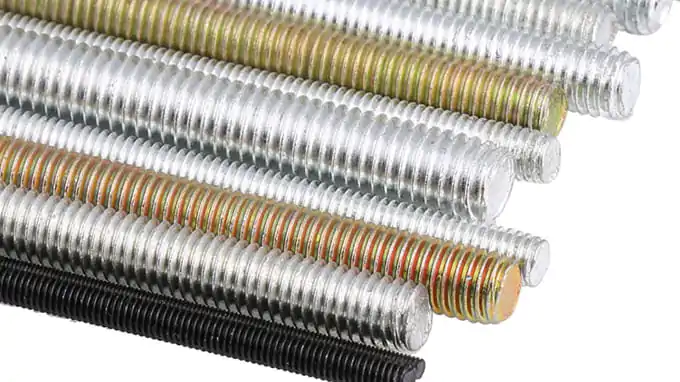

Fully Threaded Rods

Partially Threaded Rods

Partially threaded rods feature threading on only a portion of their length, with the rest being smooth. This design allows for versatility in applications where both a threaded section and a smooth section are needed. Partially threaded rods are often used in scenarios where precise alignment and movement are required.

For example, these rods can be used in mechanical systems where parts need to slide smoothly over the non-threaded section but still require a secure threaded connection. They are also used in assembly lines and manufacturing processes where parts are regularly assembled and disassembled.

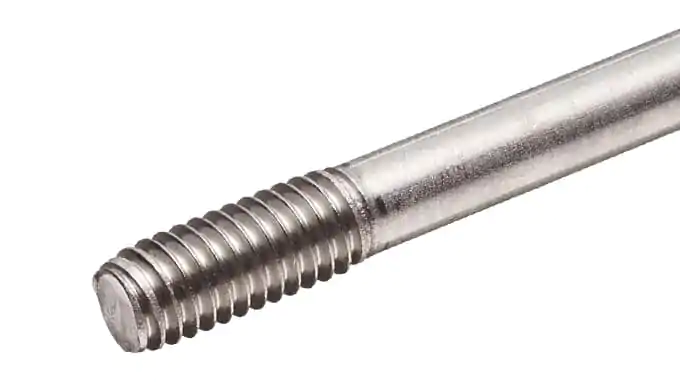

Partially Threaded Rods

Double-End Threaded Rods

Double-end threaded rods have threading on both ends, with a smooth section in the middle. This design allows for two distinct threaded connections, making them suitable for applications requiring connections at both ends with a free middle section.

These rods are commonly used in automotive and machinery applications. For instance, they can connect two components while allowing for some movement or adjustment in the middle section. This flexibility is beneficial in systems that experience varying loads and stresses.

Double-End Threaded Rods

Threaded Studs

Threaded studs are short rods, often threaded on both ends or fully threaded. They are typically used for fastening applications where space is limited. Their compact size and strong threading make them ideal for securing components in tight spaces.

Threaded studs are commonly found in automotive engines, where they secure engine components without taking up much space. They are also used in electronics and machinery, where small but strong fasteners are needed.

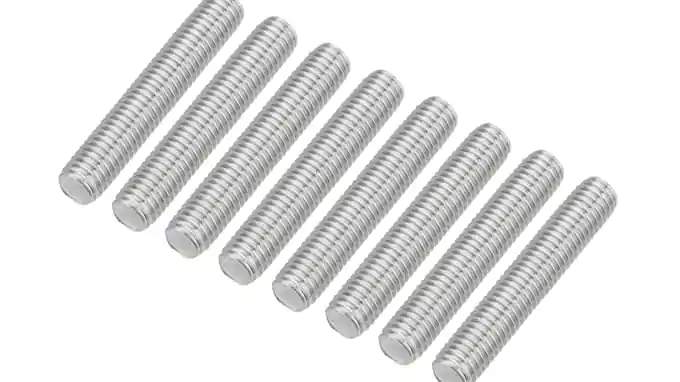

Threaded Studs

What Are the Different Grades of Threaded Rods?

Threaded rods come in various grades, each designed for specific applications and environments. Here are some common grades:

Carbon Steel Grades

  • Grade 2: General-purpose use with lower tensile strength.
  • Grade 5: Medium strength, commonly used in automotive and machinery.
  • Grade 8: High strength, used in heavy machinery and structural applications.

Stainless Steel Grades

  • 304 Stainless Steel: General-purpose with good corrosion resistance.
  • 316 Stainless Steel: Higher corrosion resistance, ideal for marine and chemical environments.

High-Strength Alloy Steel Grades

  • B7: High temperature and high pressure, used in oil and gas, and chemical industries.
  • B16: Similar to B7 but with higher temperature resistance.

Specialty Grades

  • ASTM A193 B8: High-temperature applications, typically stainless steel.
  • ASTM A320 L7: Low-temperature alloy steel, used in cryogenic applications.

Coated and Plated Grades

  • Galvanized: Zinc coating for corrosion resistance.
  • Nickel-Plated: Enhanced corrosion resistance and aesthetic appeal.

Other Materials

  • Brass: Used in decorative and electrical applications.
  • Nylon: Lightweight and corrosion-resistant, used in specific environments.
Grades of Threaded Rods

How to Determine the Grade of a Threaded Rod?

Determining the grade of a threaded rod is crucial for ensuring its suitability for a specific application. Here are several ways to identify the grade of a threaded rod:

  • Markings and Identifications: High-quality threaded rods usually have grade markings on the head or shaft, such as numbers or alphanumeric combinations (e.g., “2,” “5,” “8,” “B7”).
  • Color Coding: Some manufacturers use color coding to indicate grades. For example, grade 2 might be unmarked, grade 5 could be yellow, and grade 8 might be red.
  • Material Analysis: Different grades use various materials, such as carbon steel, alloy steel, or stainless steel. Visual inspection, weight assessment, and magnetic properties can help identify the material.
  • Strength Testing: Professional laboratories can perform tensile tests to determine the rod’s strength grade.
  • Product Specifications: New rods usually come with packaging or documentation specifying their grade.
  • Supplier Consultation: When in doubt, consult your supplier or manufacturer for specific grade information.
  • Hardness Testing: Professional hardness testers can measure the rod’s hardness, indirectly reflecting its strength grade.
  • Surface Treatment: Different grades might have distinct surface treatments, such as galvanizing or nickel plating.
  • Thread Precision: Higher-grade rods typically have more precise threading.
  • ASTM or ISO Standards: Check if the rod meets specific ASTM or ISO standards, which usually correlate with particular strength grades.

Quick Methods to Test the Lifespan of Threaded Rods

Testing the lifespan of threaded rods can help ensure they meet your application’s requirements. Here are some methods:

Accelerated Life Testing

Increasing the load, frequency, or environmental stress can simulate long-term usage in a shorter period. This helps predict how the rod will perform over time.

Vibration Analysis

Using vibration analysis techniques to monitor changes in the rod’s vibration characteristics can indicate potential failures and remaining lifespan.

Material Analysis

Examining the rod’s microstructure and hardness can provide insights into its wear and tear, helping predict longevity.

Periodic Inspections

Regularly checking the rod for signs of wear, such as thread deformation or surface corrosion, can help anticipate its remaining lifespan.

B7 Threaded Rods: Where Are They Most Commonly Used?

B7 threaded rods are high-strength alloy steel fasteners specifically designed for high-temperature and high-pressure applications. Here’s a look at their most common uses:

Oil and Gas Industry

B7 rods are extensively used in oil well equipment, pipeline flange connections, and pressure vessels due to their ability to withstand harsh environments.

Chemical and Petrochemical Industries

These rods are ideal for assembling reactors, heat exchangers, and distillation towers, where resistance to chemical corrosion is essential.

Power Plants

B7 rods are used in turbines, boilers, and high-pressure piping systems, where they endure extreme temperatures and pressures.

Heavy Machinery

They provide high strength and reliability in heavy-duty equipment like large presses and hydraulic systems.

Aerospace and Marine Applications

B7 rods are also found in aircraft engines and ship components, thanks to their durability under stress.

Construction and Infrastructure

Used in bridge construction and other large-scale infrastructure projects, B7 rods ensure stability and safety.

Threaded Rods

Conclusion

The threaded rod is a very powerful fastener involved in many industrial applications needing strength where you know what type, grade, and test method to use the threaded rod. No matter if you have high heat, chemicals, or heavy loads you need to fix, it is here.

At Shanghai Hengrui Industry Co., Ltd, we specialize in providing high-quality threaded rods tailored to your specific needs. Contact us to learn more about our products and how we can support your projects.

That’s it! I hope this guide helps you navigate the world of threaded rods with confidence.
