The Most Common Types of Concrete Anchors Used in Large Building Construction

Table of Contents

Ensuring the stability of heavy structures in concrete is critical for any large-scale construction project. Choosing the wrong type of anchor can lead to structural failures and costly delays. In this guide, I will provide a detailed overview of the most commonly used concrete anchors, helping you select the right solution for your project with confidence and precision.

Concrete anchors play a critical role in securely fastening objects to concrete surfaces. They expand within pre-drilled holes, creating strong and durable connections by gripping the sides of the concrete. The process begins by drilling a hole using a hammer drill or rotary hammer. The diameter and depth of the hole must match the specifications of the anchor being used to ensure a proper fit.

Once the hole is prepared, the anchor is inserted. Depending on the type of anchor, expansion can occur mechanically by tightening a screw, or chemically, where resin is injected into the hole and bonds the anchor to the concrete as it hardens.

Mechanical anchors rely on friction created by expansion to secure the object, while chemical anchors form a strong bond with the concrete, offering high load-bearing capacity. Both types are commonly used in construction due to their effectiveness in securing heavy loads and ensuring structural stability.

When choosing a concrete anchor bolts, one of the first decisions you’ll face is whether to go for a pre-expanded or unexpanded option.

Pre-expanded Anchors

Pre-expanded anchors, like split drive anchors, come ready to go straight out of the box. They apply constant pressure against the walls of the drilled hole, making them easy to install. Simply drill a hole, insert the anchor, and tap it into place with a hammer. These anchors are perfect for projects that don’t require any additional adjustments once the anchor is set.

Unexpanded Anchors

Unexpanded anchors, such as machine screw anchors, require an extra step. After you insert the anchor into the hole, you’ll need to tighten a bolt or screw, which forces the anchor to expand and grip the concrete. While this requires more effort, unexpanded anchors offer flexibility if you ever need to remove or adjust them.

So, which should you choose? Pre-expanded anchors are great for quick installations, while unexpanded anchors offer more versatility for projects requiring adjustments.

The strength of a concrete anchor can make or break your project—literally. The load-bearing capacity of an anchor depends on a few key factors:

  1. Load Capacity: This refers to how much weight an anchor can support. For instance, a wedge anchor might hold anywhere from 277 lbs (1.2 kN) to over 9,000 lbs (40.7 kN), depending on its size and how deep it’s embedded into the concrete. You can imagine the kind of force these anchors need to withstand when securing something like structural beams or machinery.
  2. Concrete Strength: The concrete itself plays a role in anchor strength. If you’re using concrete with a higher compressive strength (usually measured in psi or MPa), the anchor will be able to handle more load.
  3. Embedment Depth: The deeper the anchor is embedded, the more weight it can hold. So, if you’re anchoring heavy loads, make sure you drill deep enough!
  4. Safety Factor: Always apply a safety factor when calculating the load capacity. Most manufacturers recommend a safety factor of 4:1. That means if your anchor has a maximum load capacity of 1,000 lbs, you should only use it to support 250 lbs for optimal safety.

There are several types of concrete anchor bolts, each suited for different tasks. Below are some of the most commonly used in large building construction:

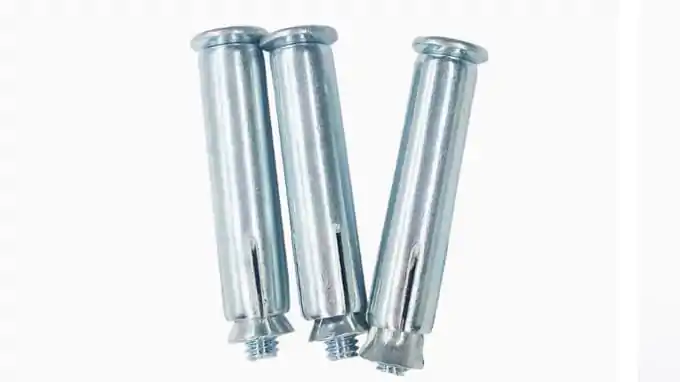

1. Wedge Anchors

Wedge Anchors

Wedge anchors are probably the most reliable for heavy-duty applications. They consist of a threaded bolt with a wedge that expands as you tighten the nut. Made from steel, they come in various coatings like stainless steel, zinc-plated, or hot-dipped galvanized, offering excellent corrosion resistance. Wedge anchors are ideal for securing heavy equipment, structural supports, and walls.

Installation Steps:

  1. Drill the Hole: Use a hammer drill to create a hole in the concrete, ensuring the hole matches the diameter and depth of the wedge anchor.
  2. Clean the Hole: Remove dust or debris from the hole using a brush or compressed air.
  3. Insert the Anchor: Place the wedge anchor into the drilled hole, ensuring it is flush with the surface.
  4. Tighten the Nut: Using a wrench, tighten the nut on top of the anchor to expand the wedge and secure it in place.
  5. Check Stability: Ensure the anchor is firmly in place by checking for any movement.

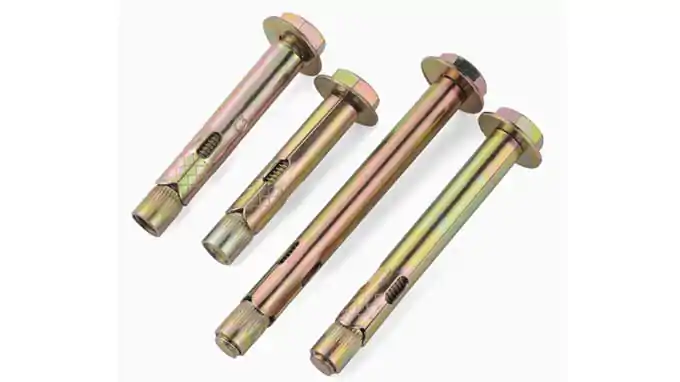

2. Sleeve Anchors

Sleeve Anchors

Sleeve anchors are versatile and relatively easy to install. They consist of a threaded bolt surrounded by an expandable sleeve. As you tighten the bolt, the sleeve expands and grips the concrete, making them suitable for hollow and solid materials. These anchors are often used for installing fixtures like railings, shelves, or electrical boxes.

Installation Steps:

  1. Drill the Hole: Drill a hole in the concrete that matches the diameter of the sleeve anchor.
  2. Clean the Hole: Clear out any dust or debris from the drilled hole.
  3. Insert the Anchor: Place the sleeve anchor into the hole.
  4. Tighten the Bolt: Using a wrench, tighten the bolt on the top of the anchor, which will expand the sleeve and secure it against the walls of the hole.
  5. Verify Installation: Check that the anchor is securely fastened by ensuring no movement in the fixture.

3. Drop-In Anchors

Drop-In Anchors

If you’re looking for flush-mounted solutions, drop-in anchors are your go-to. These anchors are installed flush with the surface and are set in place with a specialized tool. They offer great support for ceiling installations and projects where a smooth, clean finish is important.

Installation Steps:

  1. Drill the Hole: Create a hole in the concrete that matches the diameter of the drop-in anchor.
  2. Clean the Hole: Use a vacuum or compressed air to remove any dust from the hole.
  3. Insert the Anchor: Drop the anchor into the hole, making sure it sits flush with the concrete surface.
  4. Set the Anchor: Use a setting tool to expand the anchor by tapping it with a hammer.
  5. Install the Bolt: Insert a bolt into the anchor and tighten as needed to secure the fixture.

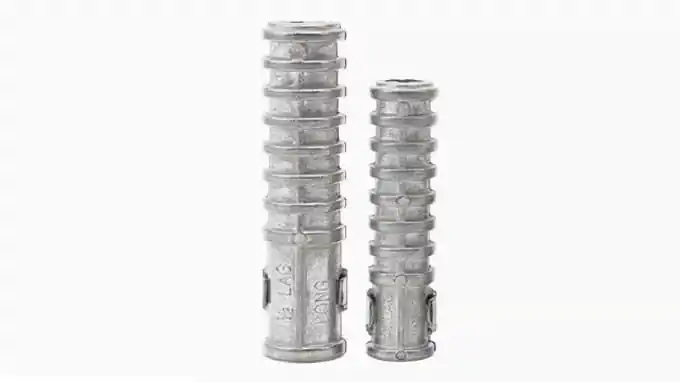

4. Lag Shields

Lag Shields

Lag shields are another excellent choice for securing furniture, cabinets, or shelves. These anchors work by expanding as you drive in a lag screw. The best part? You can remove the lag screw later without compromising the anchor’s hold.

Installation Steps:

  1. Drill the Hole: Drill a hole that matches the diameter of the lag shield.
  2. Clean the Hole: Remove debris from the hole to ensure the shield can grip properly.
  3. Insert the Lag Shield: Place the lag shield into the hole, ensuring it is flush with the surface of the concrete.
  4. Insert the Lag Screw: Drive a lag screw into the shield, which will cause the shield to expand and grip the walls of the hole.
  5. Tighten Securely: Ensure the lag screw is tightened adequately for a firm hold.

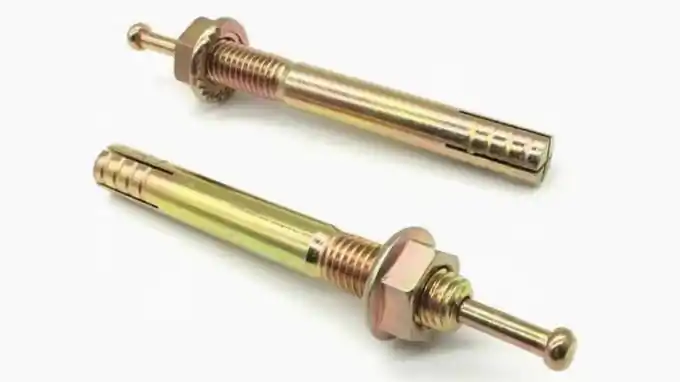

5. Strike Anchors

Strike Anchors

Strike anchors are perfect for situations where vibration or constant movement is a concern. These anchors are driven into the concrete and expand upon impact, making them ideal for beams and heavy-duty applications like securing HVAC systems.

Installation Steps:

  1. Drill the Hole: Use a hammer drill to create a hole in the concrete that matches the size of the strike anchor.
  2. Clean the Hole: Remove any debris using compressed air or a brush.
  3. Insert the Anchor: Place the strike anchor into the hole.
  4. Set the Anchor: Hammer the strike anchor until it is flush or slightly below the surface.
  5. Attach Fixture: Secure the fixture by fastening it with the provided hardware.

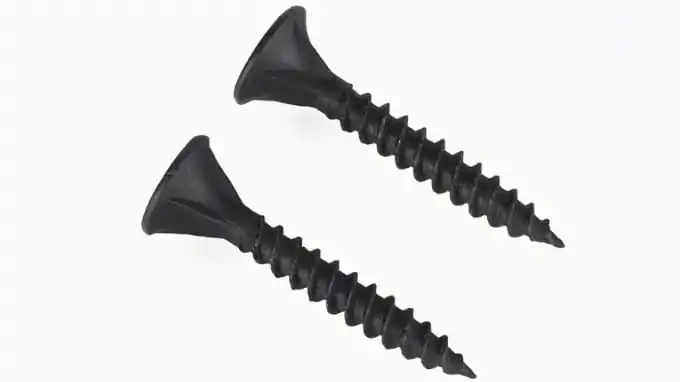

6. Concrete Screws (Tapcon)

Concrete Screws (Tapcon)

Concrete screws are self-tapping, meaning they create their own threads as they are driven into the concrete. They’re a quick and easy solution for light to medium loads, perfect for attaching brackets, shelves, or light fixtures.

Installation Steps:

  1. Drill the Pilot Hole: Drill a pilot hole into the concrete using a masonry bit. Ensure the hole matches the screw’s diameter.
  2. Clean the Hole: Clear out any dust or debris to ensure the screw threads can form properly.
  3. Insert the Screw: Drive the concrete screw directly into the pilot hole using a drill or impact driver.
  4. Tighten Securely: Ensure the screw is snug but avoid overtightening, as this can strip the threads.

7. Chemical (Adhesive) Anchors

Chemical anchors provide superior strength by bonding directly to the concrete. These anchors are highly resistant to vibrations and environmental factors, making them perfect for heavy-duty applications. The installation involves filling the drilled hole with adhesive and inserting the anchor before the adhesive sets.

Installation Steps:

  1. Drill the Hole: Drill a hole in the concrete that matches the diameter of the anchor rod or rebar.
  2. Clean the Hole Thoroughly: Use a brush and compressed air to ensure the hole is free of dust and debris.
  3. Inject the Adhesive: Fill the hole with epoxy or chemical adhesive as per the manufacturer’s instructions.
  4. Insert the Anchor: Place the threaded rod or rebar into the adhesive-filled hole, turning it slightly to ensure even coverage.
  5. Allow to Cure: Wait for the adhesive to cure completely before applying any load or fastening the fixture.

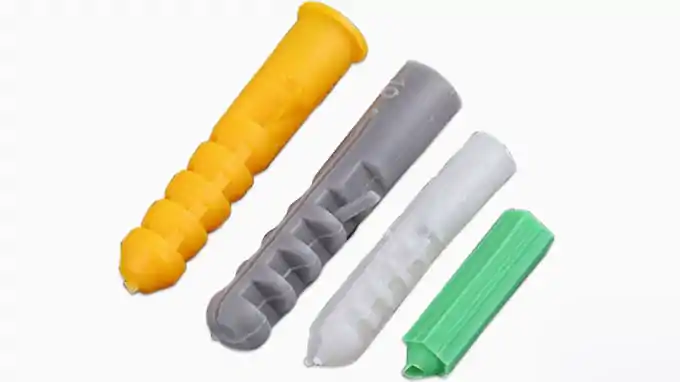

8. Plastic Anchors

Plastic Anchors

Plastic anchors offer a simple and efficient solution for securing lightweight objects to concrete or masonry surfaces. These anchors expand when a screw is inserted, creating a tight grip in the material. They are designed for non-load-bearing applications, such as hanging small fixtures or decorations. Installation is straightforward: drill a hole, insert the anchor, and drive in the screw to secure it.

Installation Steps:

  1. Drill the Hole: Use a drill bit that matches the size of the plastic anchor to create a pilot hole in the concrete.
  2. Clean the Hole: Remove any dust or debris from the hole to ensure a secure fit.
  3. Insert the Plastic Anchor: Push the plastic anchor into the hole until it is flush with the surface. You may need to gently tap it with a hammer.
  4. Insert the Screw: Drive the screw into the plastic anchor. As the screw is tightened, the plastic anchor will expand, securing the fixture in place.
  5. Tighten Carefully: Ensure the screw is tight, but be cautious not to overtighten, as this could damage the plastic anchor.

Selecting the right anchor involves more than just grabbing the first one you see. You need to evaluate factors like:

  • Load requirements: Heavy machinery will require anchors with high load capacities, such as wedge or chemical anchors.
  • Concrete thickness: Make sure your anchor is suitable for the thickness of the concrete you’re working with.
  • Environmental conditions: Corrosion-resistant materials like stainless steel or hot-dipped galvanized anchors are essential for outdoor projects.
  • Installation difficulty: If you need something quick and easy, go for pre-expanded anchors like sleeve anchors. If flexibility is key, consider unexpanded anchors.

By carefully considering these factors, you’ll ensure your project is secure, stable, and long-lasting.

Concrete anchors may seem small, but their role in large building construction is massive. Whether you’re securing structural beams, heavy machinery, or even simple fixtures, selecting the right anchor is crucial for ensuring the safety and stability of your project. Always take into account the load requirements, type of anchor, and environmental conditions before making your choice.
