Shoulder bolts are specialized fasteners with a precision shoulder that enables alignment, motion, and load-bearing. From automation to aerospace, these components ensure functionality and durability in critical assemblies.

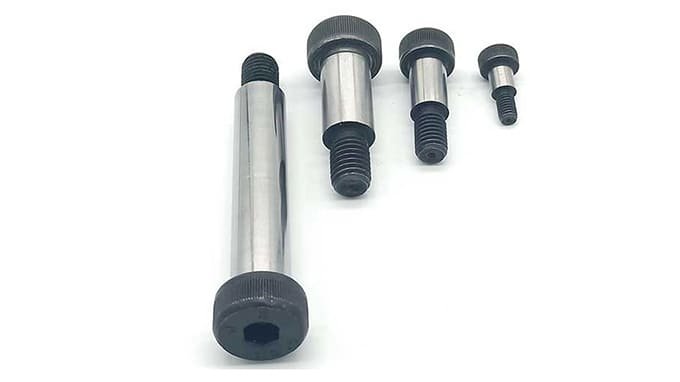

Shoulder bolts, also known as shoulder screws or stripper bolts, feature a head, an unthreaded cylindrical shoulder, and a threaded end. This shoulder enables rotating, sliding, or precisely aligning components in high-precision applications. Commonly used in machinery, automotive, robotics, medical devices, and aerospace, shoulder bolts act as guides, shafts, pivots, or spacers in motion-intensive systems.
rom motion control to mechanical alignment, let’s explore how shoulder bolts play a role across industries and engineered systems.
Machinery Manufacturing
In industrial machinery and equipment, shoulder bolts are essential for ensuring accurate assembly and stable component movement. Their precision-machined shoulder provides a fixed guide for linear motion and rotational movement. Common use cases include:
- Pulleys and transmission systems: Acting as axles or pivot points.
- Bearing supports: Providing a smooth load-bearing surface.
- Injection and stamping molds: Ensuring mold plates open and close along a guided track.
Because shoulder bolts can handle significant lateral loads, they are especially useful in heavy-duty machines where side stress and alignment are critical. Additionally, their standardized shoulder bolt dimensions and availability in both inch and metric shoulder bolts allow integration into global equipment designs.
Automotive and Transportation
In the automotive and transport sectors, shoulder bolts are widely used in dynamic assemblies that require controlled motion and precise positioning. Some common applications include:
- Steering systems: Acting as rotational pins with tight tolerances.
- Brake components: Serving as alignment elements under repeated impact loads.
- Door hinges and linkages: Ensuring consistent pivoting over time.
These bolts are often selected for their resistance to vibration, wear, and impact, which makes them ideal for components subjected to frequent movement or environmental stress. Compared to partially threaded bolts, shoulder bolts offer better control over axial motion and alignment, which is essential in safety-critical parts.
Industrial Automation and Robotics
In robotic arms, conveyors, and smart manufacturing systems, shoulder bolts deliver precise movement and secure mechanical alignment. Engineers depend on them in:
- Linear slide tracks and glides
- Positioning clamps and end-effectors
- Rotating joints and servo interfaces
Due to their dimensional precision and smooth surface finish, shoulder bolts ensure low-friction movement and repeatable positioning. OEMs and automation engineers often specify shoulder bolt clearance hole tolerances to optimize fit with minimal play. Their ability to serve both as spacers and shafts makes them multifunctional, reducing component count and simplifying assembly.
Tooling and Fixture Manufacturing
Shoulder bolts are a staple in jig and fixture design, acting as alignment and support elements. Whether in CNC machining, quality inspection, or production line setups, they serve:
- Guide posts for sliding plates
- Fixed spacers for gauging tools
- Support pins in clamping fixtures
Tooling engineers often require custom shoulder bolt dimensions to match non-standard fixture designs. The smooth, rigid shoulder acts as a repeatable datum point, ensuring accurate workpiece positioning even under load or repeated cycles. Materials such as stainless steel or hardened alloy are often chosen for wear resistance and longevity.
Aerospace Engineering
Aerospace demands the highest level of mechanical precision, and shoulder bolts play a quiet but crucial role in maintaining structural alignment and motion integrity. They’re often found in:
- Flight control systems
- Turbine casing assemblies
- Modular subassemblies for maintenance
Their main role is to provide a precise bearing or pivot surface where misalignment is not an option. In systems where dynamic loads and vibration are constant, the shoulder bolt’s fixed diameter and smooth finish prevent mechanical drift and ensure repeatable motion. Designs often call for special alloys or coatings to withstand temperature extremes and corrosion.
Medical Devices and Equipment
Precision, hygiene, and reliability are key in medical equipment. Shoulder bolts are used to assemble:
- Orthopedic tools
- Imaging machines
- Surgical robotics and instruments
They facilitate controlled movement and alignment between high-tolerance components. In operating environments, the bolts must also be corrosion-resistant and easy to clean. Many manufacturers opt for precision shoulder bolts with ground shoulders and fine thread finishes to ensure consistent performance and low maintenance over time.
Electronics and Energy Systems
In electronics manufacturing, shoulder bolts contribute to the precise movement and mounting of subassemblies. Examples include:
- Printhead rails in printers
- Hinged panels in electronic housings
- Motion components in scanning or positioning systems
In the energy sector, such as wind turbines or backup generators, shoulder bolts maintain the spacing and structural alignment of moving parts. They offer excellent performance under thermal expansion, vibration, and long-term fatigue—making them critical for rotating equipment and modular power assemblies.
OEMs and Custom Engineering Projects
For OEMs and engineering service providers, shoulder bolts offer a high degree of customization. Whether it’s modifying the shoulder length, changing thread pitch, or adjusting the head profile, manufacturers can deliver made-to-order parts based on 2D drawings or 3D CAD models.
Procurement teams typically look for:
- Fast response to RFQs with custom drawings
- Minimum order quantity (MOQ) flexibility
- Short lead times for non-standard specs
OEMs working in small-batch prototyping or specialized industries (like robotics, lab automation, or defense) benefit from the precision and adaptability of shoulder bolts. With shoulder bolt dimensions PDF datasheets readily available, engineers can easily define specs and tolerances required for mission-critical builds.
FAQ：
What are shoulder eye bolts used for?
→ These are different from shoulder bolts. Shoulder eye bolts are used in lifting and rigging applications to handle angled loads safely.
What’s the difference between a shoulder screw and a regular screw?
→ Shoulder screws have a smooth, unthreaded shoulder that allows for motion or alignment. Regular screws are fully threaded and provide only fastening.
What’s the difference between a shank and a shoulder bolt?
→ A shoulder bolt has a defined shoulder section for precise fit and load distribution. A shank refers to any unthreaded part of a bolt but lacks the precision role of a shoulder.
Why is a shouldered stud used?
→ Shouldered studs are welded in place and designed for high shear strength. Shoulder bolts, on the other hand, are typically removable and used for alignment or pivoting.
Conclusion
Shoulder bolts provide critical alignment, support, and movement control in modern engineering systems. From industrial machines to robotic arms, they ensure stability where it matters most. If you need high-precision fasteners—or custom shoulder bolt specifications—reach out with your drawings. We’re ready to support your next build.
